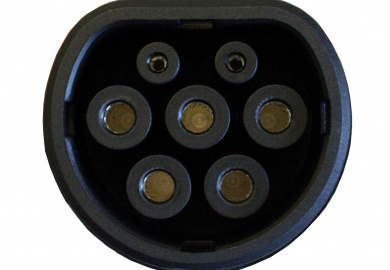

EV charging connector Type 2 female (car side)

They meet IEC62196-2 standards;
Nice shape, handy ergonomic design, easy to use;
Protection class: IP54 (under combined conditions);
Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and anti-UV

Rated current: 16A / 32A / 63A;
Supply voltage: 250V AC;
Insulation resistance:> 1000MΩ (DC500V);
Increase terminal temperature: <50K;
Durable voltage: 2000V;
Contact impedance: 0.5mΩ Max
Vibration resistance: Complies with JDQ53.36.1.1-53.36.1.2.
Insertion and combined force: 45N
Operating temperature: -30 ° C ~ + 50 ° C

Housing material: thermoplastic (flammability of the UL94 V-0 isolator);

Contact pin: Copper alloy, silver or nickel;

Sealing gaskets: rubber or silicone rubber;

Weight:

Length

EV charging connector Type 2 female (car side)
